Railset Web – “A Better Solution”
Simplifies Specification
- The same 7components can be configured for any application: radius or flat walls and ceilings, soffits, light coves, columns, cavity walls, & partitions.
Simplifies Installation

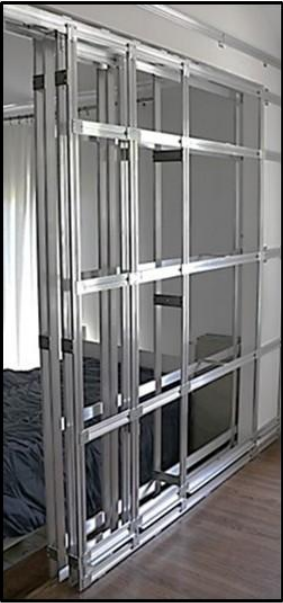

- The Web creates a square, level, easily plumbed mounting surface for panels and trim. Wall mount components slide in rail screw boss reveals and mount on studs every 32” on center. The Web masks mounting surface irregularities eliminating the need for wall prep. The web can be either site assembled or pre-assembled in the shop to reduce installation time and field labor.
Simplifies Estimating
- The pre-engineered component assembly costs are standard for all Web configurations. Since the Web masks sub-wall irregularities, wall prep unknowns are eliminated. Budget only actual installation time.

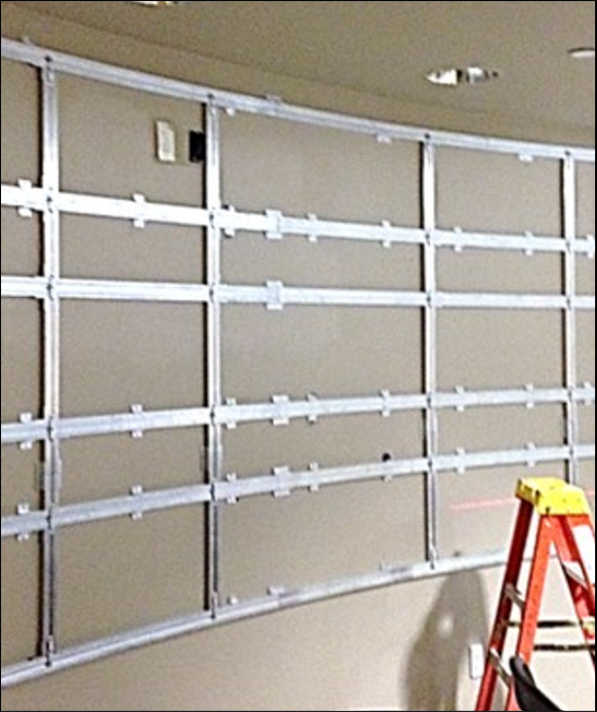

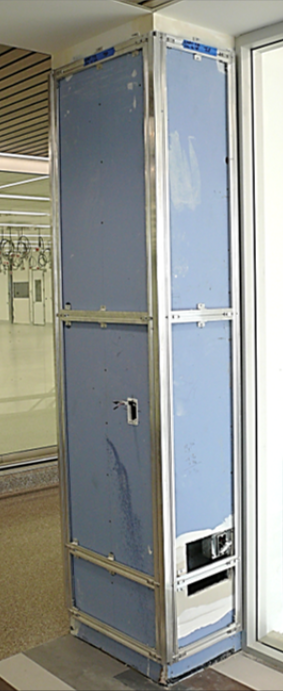

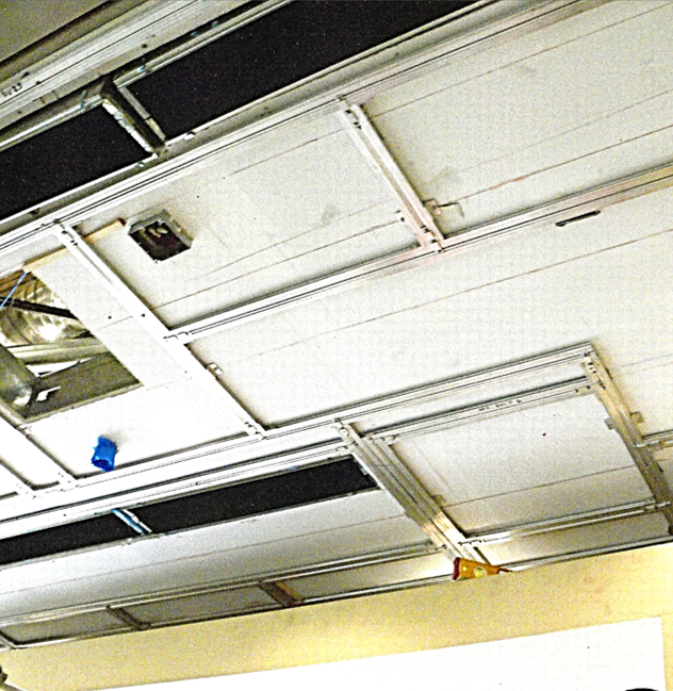

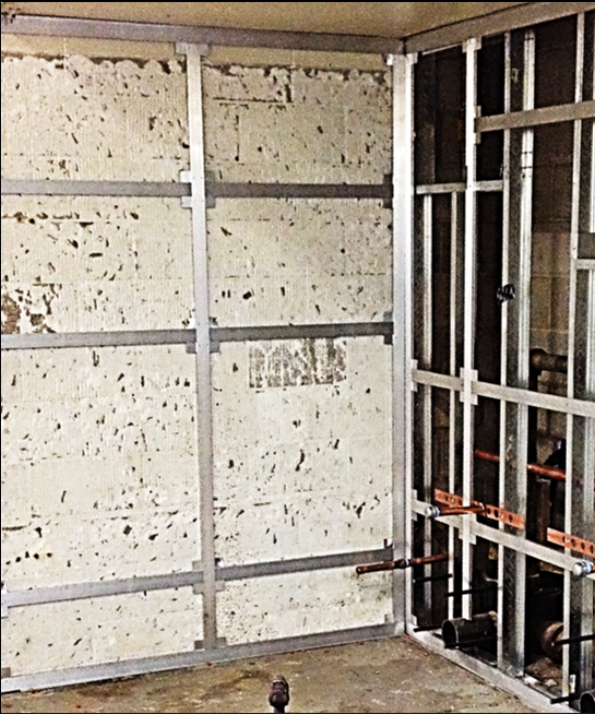

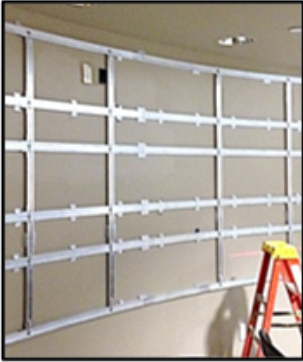

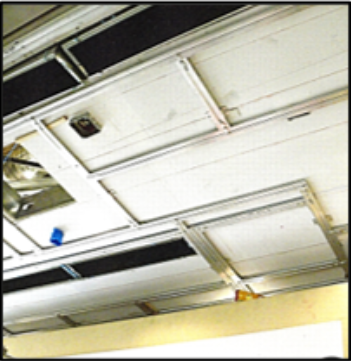

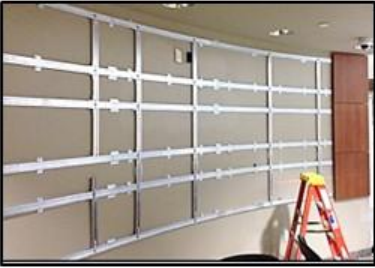

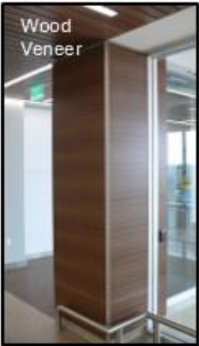

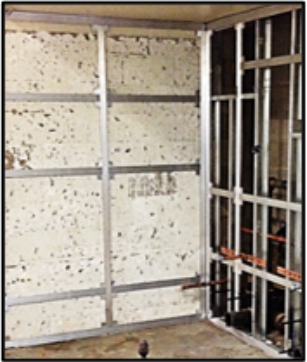

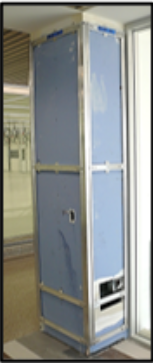

Radius Web Fixed to Drywall & Stud Flat Web Fixed to Concrete & Open Stud Framing Column Enclosure Web Fixed to Complicated Hard Lid Ceiling
Railset Web – “A Better Solution”

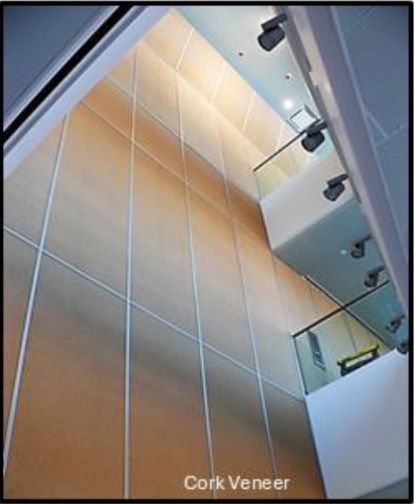

L. A. Mission College, Administration Lobby 3 Story Atrium
Railset Web Hardware
Nine Frame Components

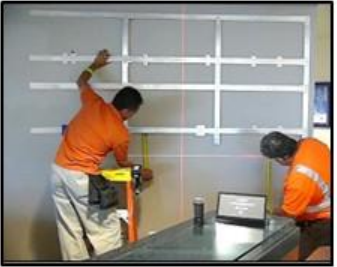

Three Assembly Options

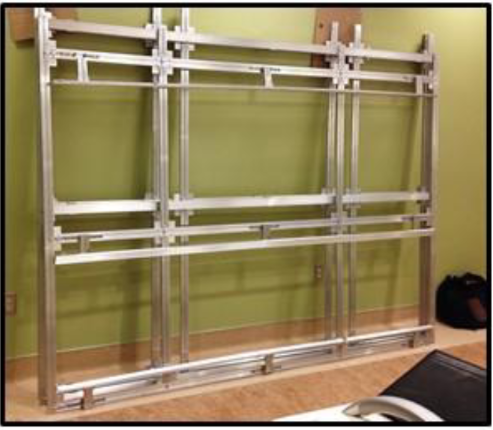

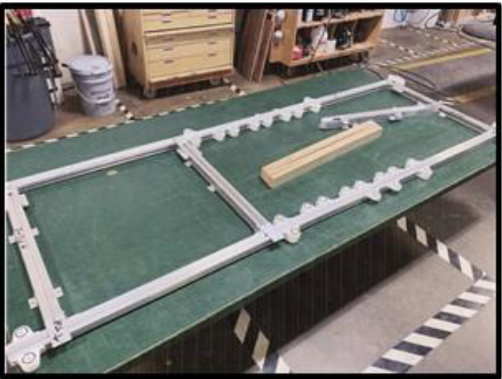

Preassemble Capability

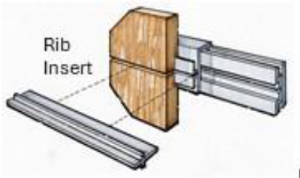

Panel Fastening
Panel Edge Trim

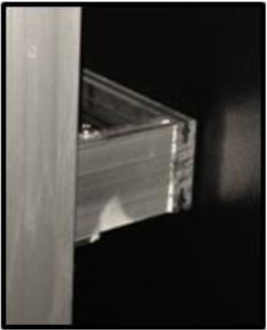

Corner Options

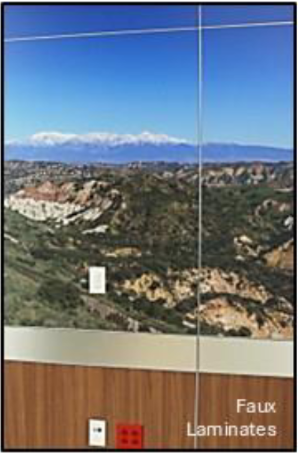

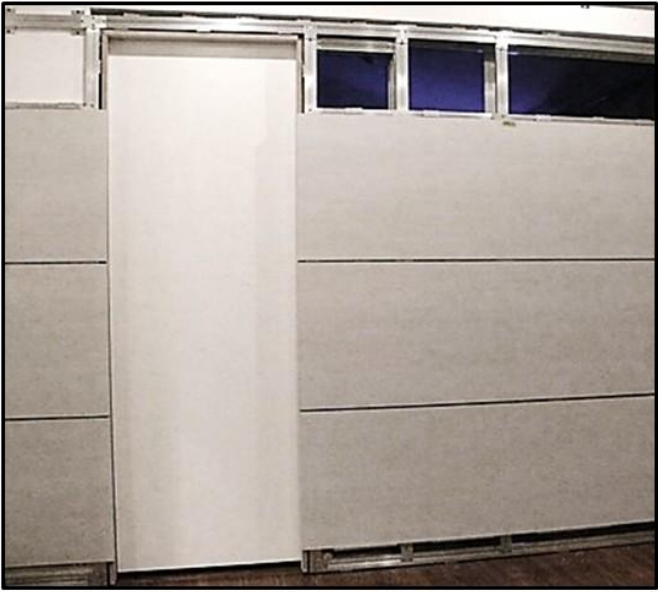

Railset Decorative Panels & Hardware
¾" Thick Rigid Panels
Four Fastening Options
Perimeter Edge Trim
Corner Options

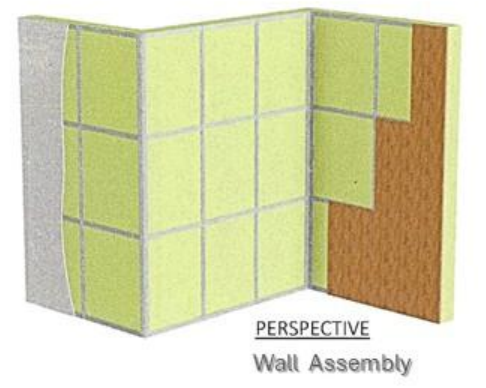

Railset Web Wall Mount

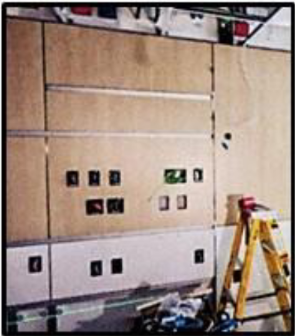

Hospital Patient Headwall

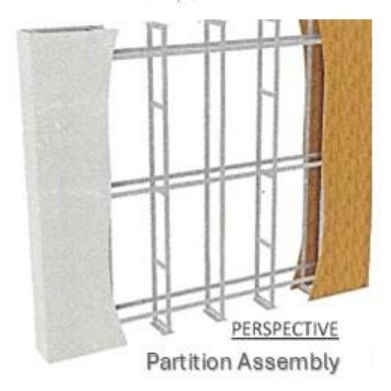

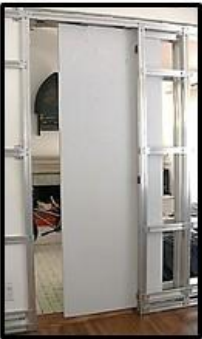

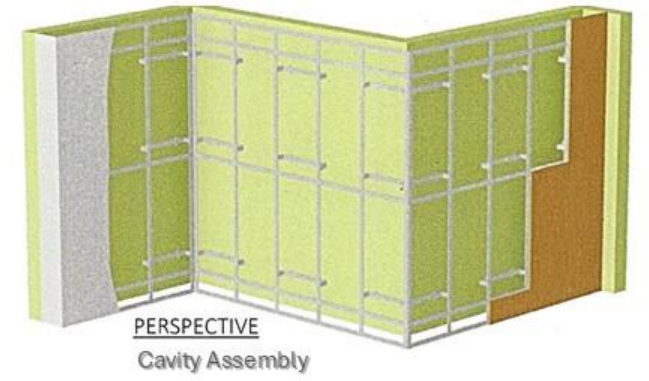

Railset Web Cavity Frame

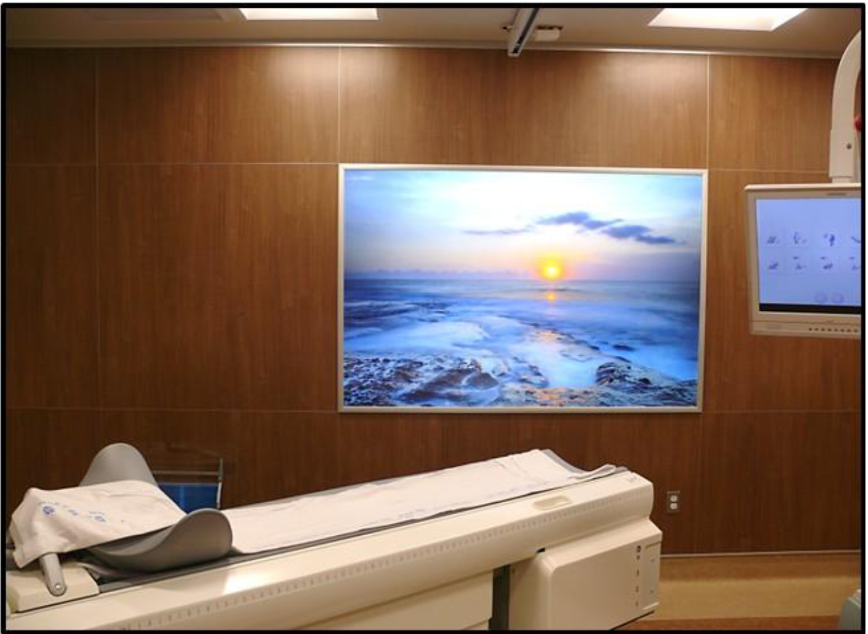

Hospital Magnetic Imaging Room
