The Railset Web - “A Better Solution”
EVBG Corporation, Ceiling Canopy

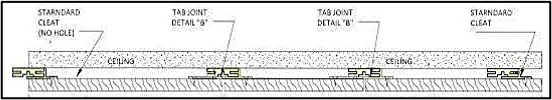

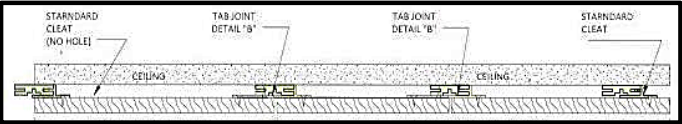

Back of Panel Cleated to Rail

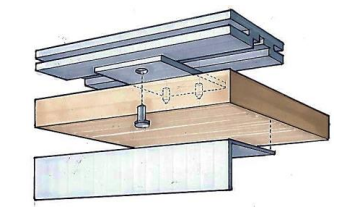

Perimeter Assembly:
- Connection Plate Fixes Panel to Rail
- Wall angle covers the gap between wall & panel
A Better Solution
- The hard lid canopy was to shallow to accommodate decorative panels installed with either suspension grid or black iron support.
Railsets 1-1/2” total panel and Web assembly maintained the correct recess canopy aesthetic. - Web masked hard lid surface irregularities eliminating costly surface preparation.
- Because the Web is square, level, with exact flush line, the 4’ x 4’ x ¾” are flush and perfectly aligned.
- Web was installed in pre-assembled sections that reduced installation time.
